# Kanban view

See products as workflow status columns and move them between statuses by drag and drop, within the workflow conditions.

The Kanban view is used with [workflow](https://usermanual.ergonode.com/workflow/information). It uses workflow conditions (if any are set) to allow a product to be taken from one workflow state to another. To do so, simply drag and drop a product from one column to another. When dragged, the statuses the product can be moved to turn green and show ***Move here***. If the product doesn't meet the conditions set for a status, it can't be moved there.

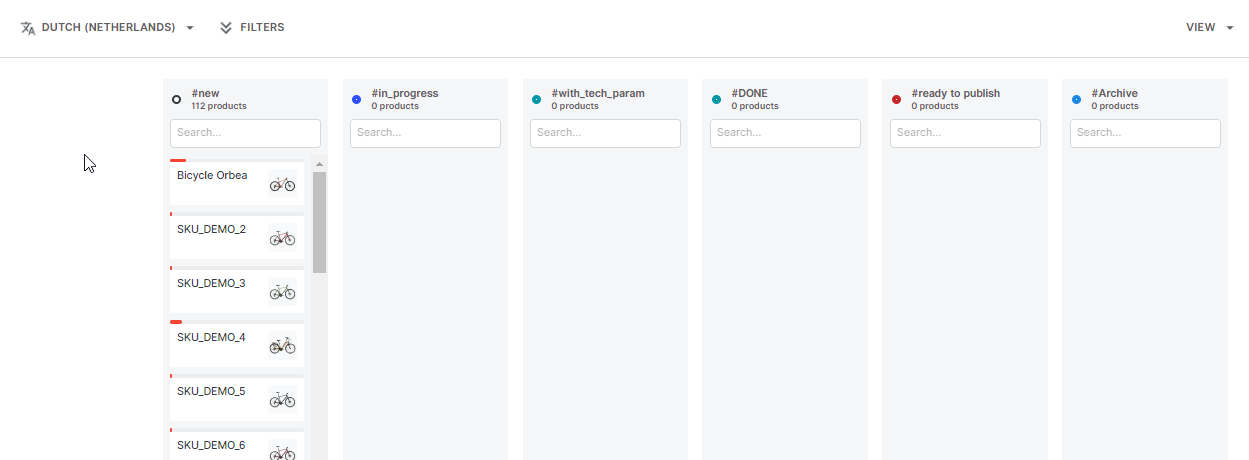

Each column is a workflow status and shows its name, the number of products in it and the status colour.

<figure><img src="https://171427267-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FM9BbYBbDPiJapb75xJ2k%2Fuploads%2FlzIIhj429bG0iMwY5sU8%2Fimage.png?alt=media&#x26;token=2a909053-537b-4b2d-a84f-751394886a45" alt="" width="563"><figcaption></figcaption></figure>

You can simply click on a product to open it in [edit mode](https://usermanual.ergonode.com/products/catalog/template).

<figure><img src="https://171427267-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FM9BbYBbDPiJapb75xJ2k%2Fuploads%2FjsPRbuiYq9JWiUA0tlpY%2Fimage.png?alt=media&#x26;token=3f18ba16-d6b3-48d1-b42b-062da562c846" alt="" width="563"><figcaption></figcaption></figure>

When you hover over a product, a ***three dots*** menu appears. It holds ***Edit***, ***Comments*** and ***Delete***.

The thin coloured bar along the top edge of each card shows the product's completeness.

At the top of a view, there are the [***Views***](https://usermanual.ergonode.com/products/catalog/system-views) menu, the view switchers, the ***settings (gear)*** icon that opens the [Display settings](https://usermanual.ergonode.com/products/catalog/system-views/display-settings), the ***Product type***, ***Template*** and ***Category*** quick filters (see [Quick filters](https://usermanual.ergonode.com/products/catalog/quick-filters)) and [***Filters***](https://usermanual.ergonode.com/products/catalog/filters-advanced). The language change selector is in its own row, right above the workflow columns. Click it to choose the language whose workflow the board shows.

<figure><img src="https://171427267-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FM9BbYBbDPiJapb75xJ2k%2Fuploads%2FAF8cWKWfVhig70HcqGIO%2Fimage.png?alt=media&#x26;token=16cf8a55-52a7-4df7-8b6f-8d59bfe5afb1" alt="" width="563"><figcaption></figcaption></figure>

Each language has its own workflow. The screen below shows the board in German: its workflow has other statuses than the English one, and the same products are in different workflow states. You can [assign](https://usermanual.ergonode.com/system/settings/languages) one workflow per language.

<figure><img src="https://171427267-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FM9BbYBbDPiJapb75xJ2k%2Fuploads%2F0kTOsQs4nYrMLWOqFV8s%2Fimage.png?alt=media&#x26;token=24868441-cbb2-4613-91f8-f04ca99a9e94" alt="" width="563"><figcaption></figcaption></figure>


---
